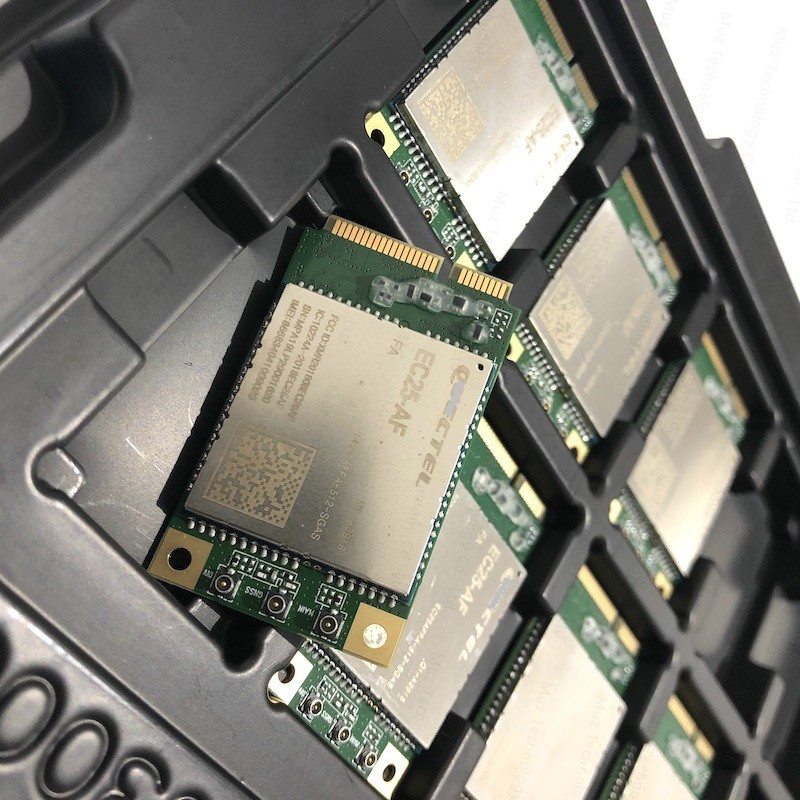

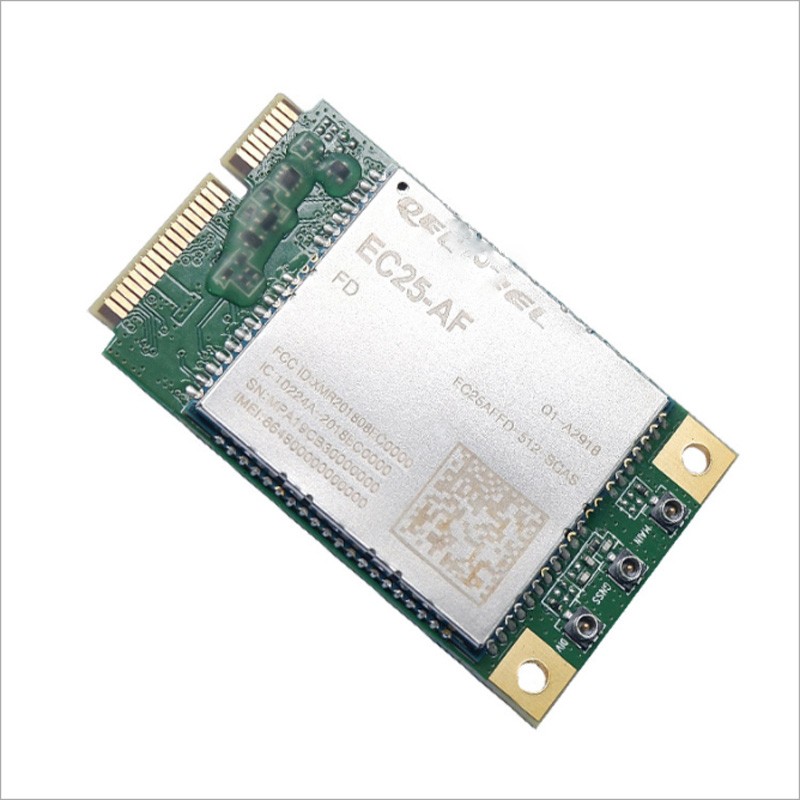

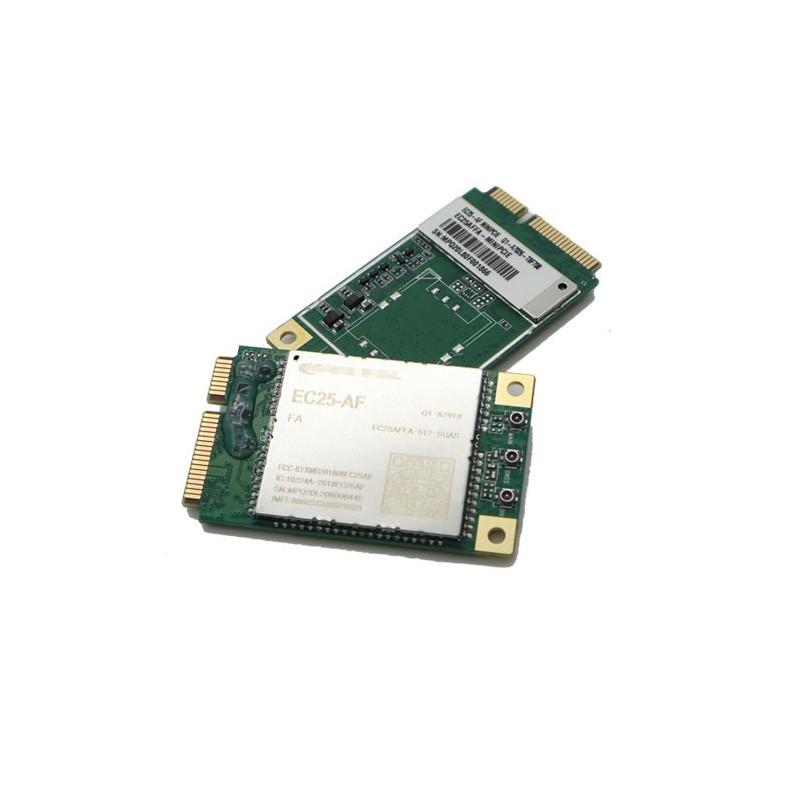

EC25-AF EC25-AFFA 4g Modem EC25 Mini PCIe LTE Cat 4 Module

EC25-AF EC25-AFFA 4g Modem EC25 Mini PCIe LTE Cat 4 Module

Overview

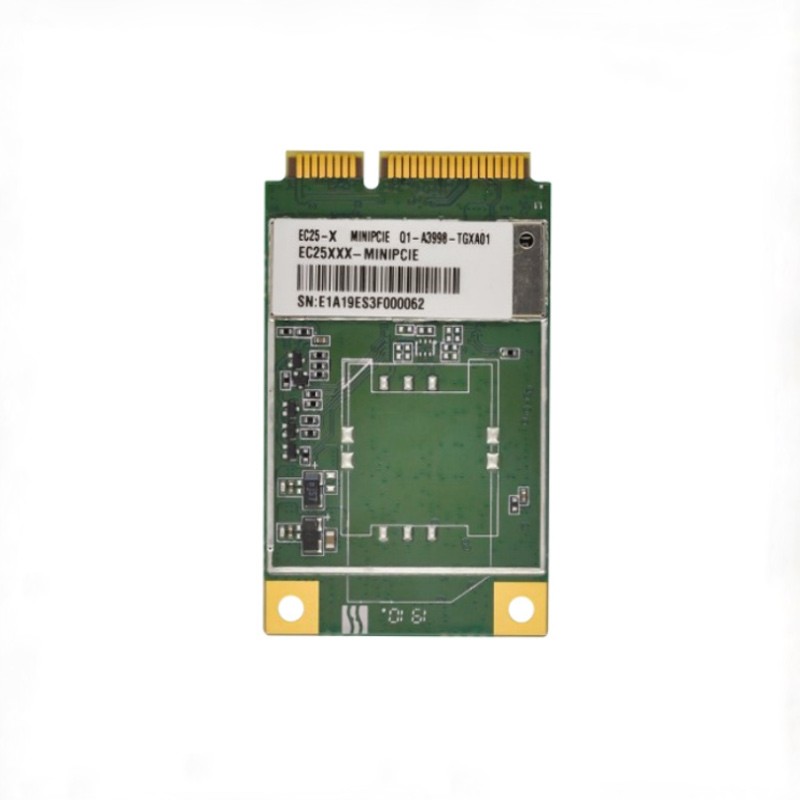

Quectel EC25 Mini PCIe is a series of LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe).

It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.

EC25 Mini PCIe contains 11 variants: EC25-E Mini PCIe, EC25-EU Mini PCIe, EC25-EUX Mini PCIe, EC25-J Mini PCIe, EC25-A

Mini PCIe, EC25-V Mini PCIe, EC25-AF Mini PCIe, EC25-AFX Mini PCIe, EC25-MX Mini PCIe, EC25-AU Mini PCIe and EC25-AUX

Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected

even in remote areas devoid of 4G or 3G coverage.

EC25 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and

QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable

positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows

7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as

industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.

Key Benefits

LTE category 4 module optimized for broadband IoT applications

Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage

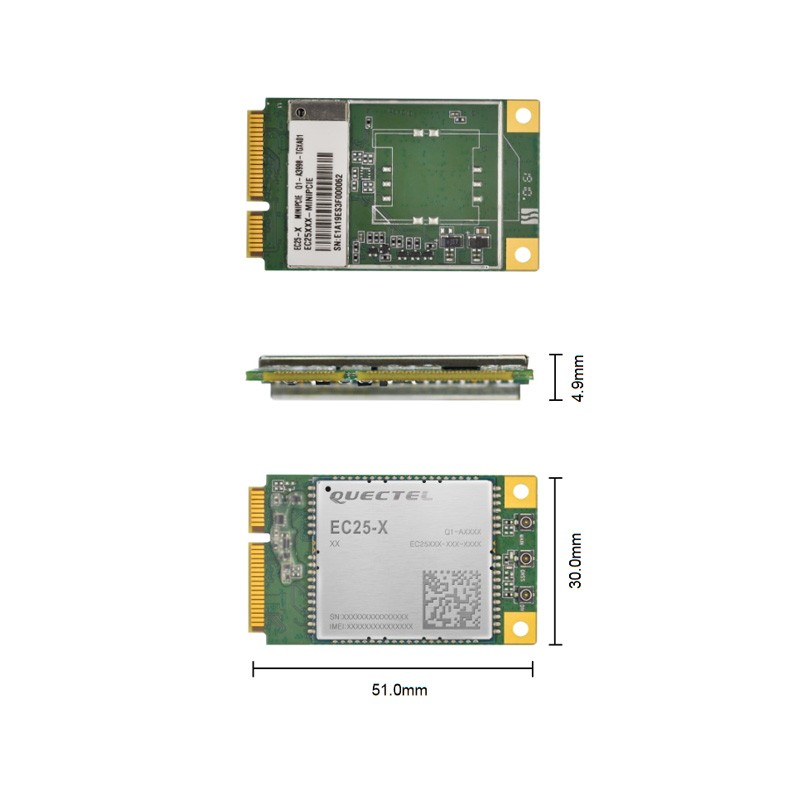

Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for

manufacturers to easily integrate wireless connectivity into their

devices

MIMO technology meets demands for data rate and link

reliability in modem wireless communication systems

Multi-constellation GNSS receiver available for applications

requiring fast and accurate fixes in any environment

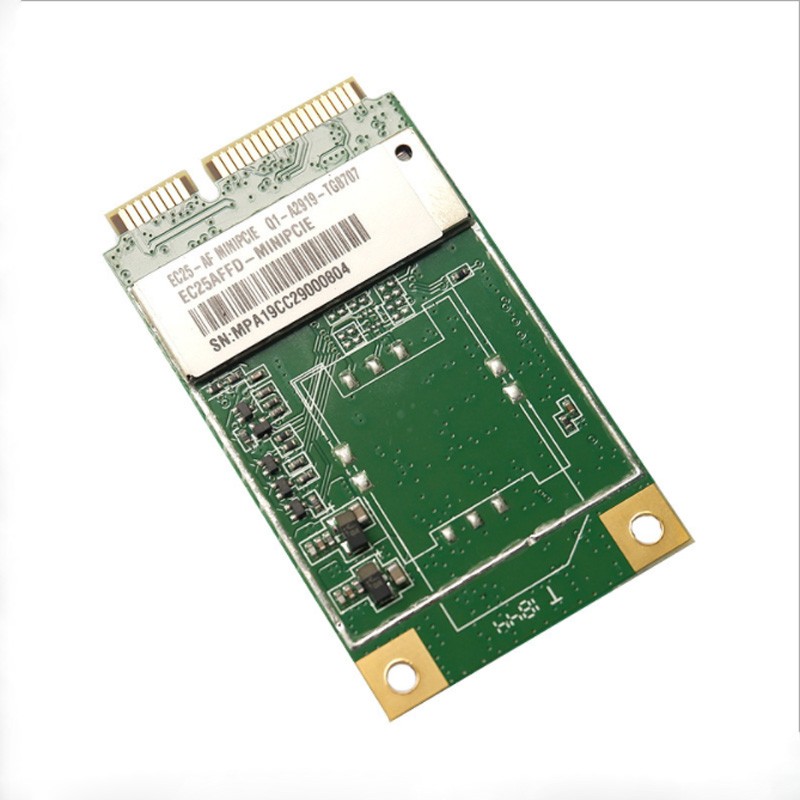

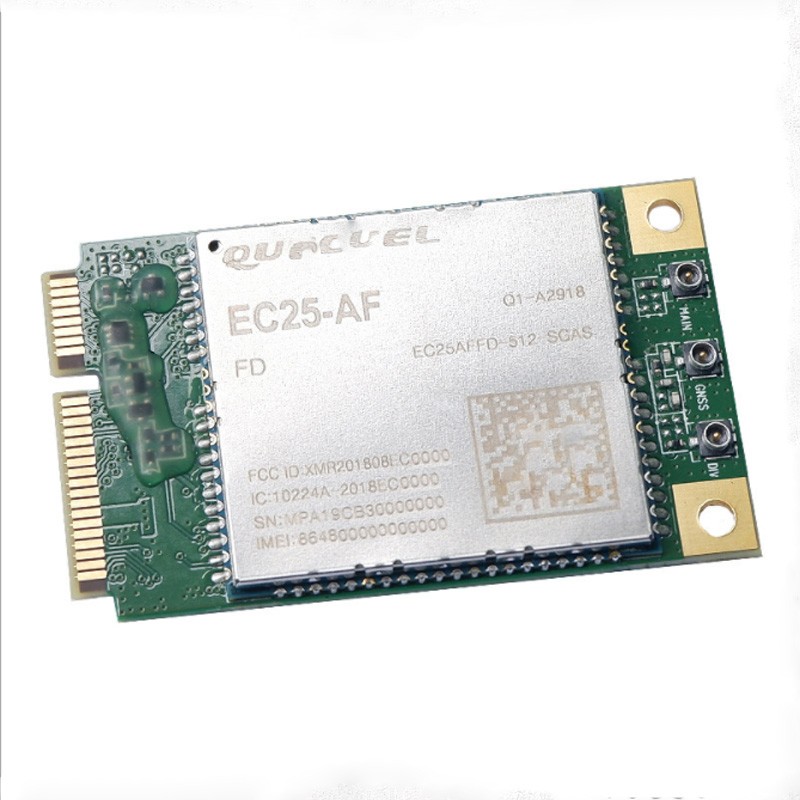

 EC25-AFFD Mini PCie and EC25-AFFA Mini PCie veriosn for Optional.
Region/OperatorNorth America
LTE-FDDB2/B4/B5/B12/B13/B14/B66/B71
WCDMAB2/B4/B5
GNSS

GPS/GLONASS/BeiDou (Compass)/

Galileo/QZSS (Optional)

Certifications

North America: Verizon/AT&T/

T-Mobile/U.S. Cellular

Canada: Rogers/Telus

Global: GCF

North America: FCC/PTCRB

Canada: IC

RoHS/WHQL

LTE-FDD Data Rates (Mbps)150 (DL)/ 50 (UL)
DC-HSPA+ Data Rates (Mbps)42 (DL)/ 5.76 (UL)
WCDMA Data Rates (Kbps)384 (DL)/ 384 (UL)
USB Serial Driver

Windows 7/ 8/ 8.1/ 10,

Linux 2.6~5.4,

Android 4.x/ 5.x/ 6.x/ 7.x/ 9.x

Supply Voltage Range3.0V~3.6V, 3.3V Typ
Power Consumption

2.2mA @Sleep, Typ.

21.7mA @Idle
