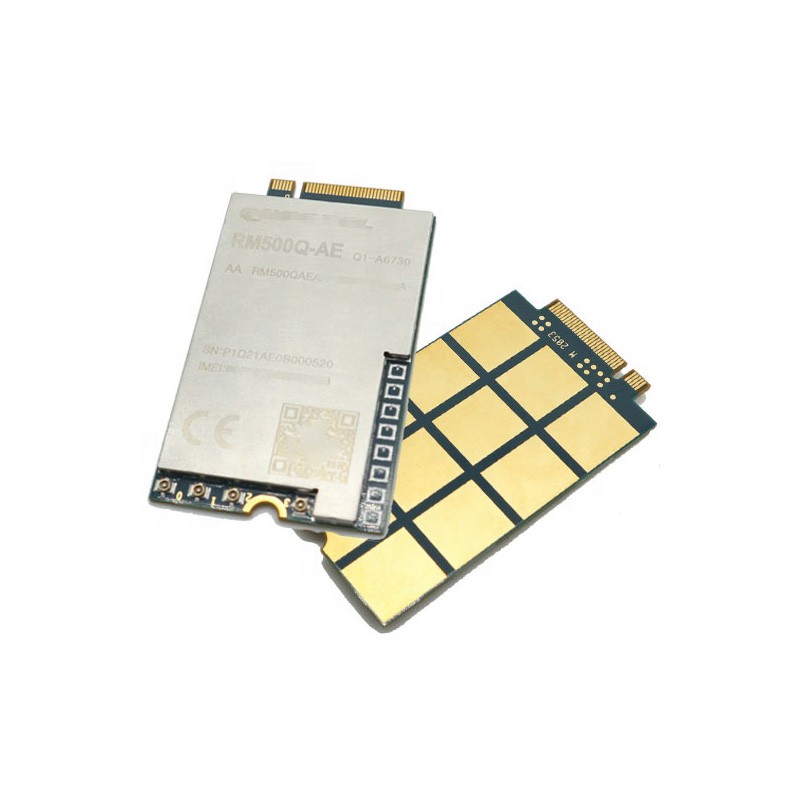

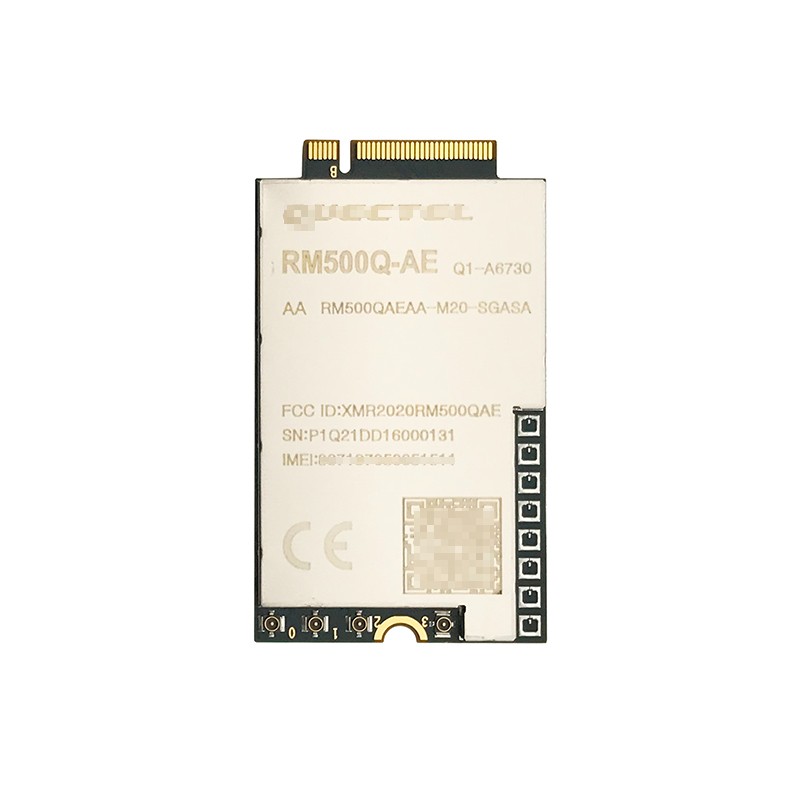

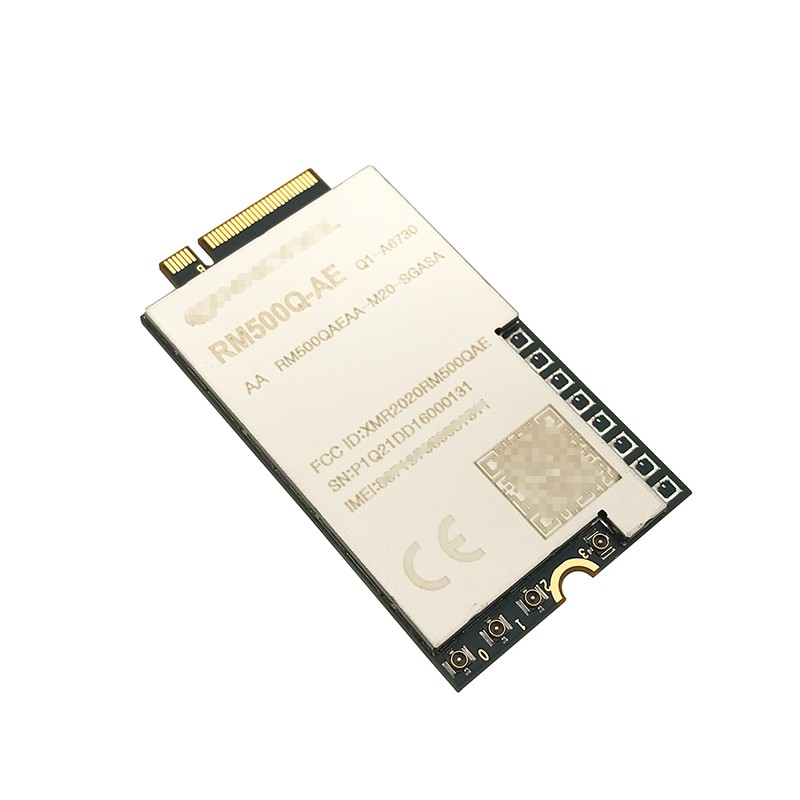

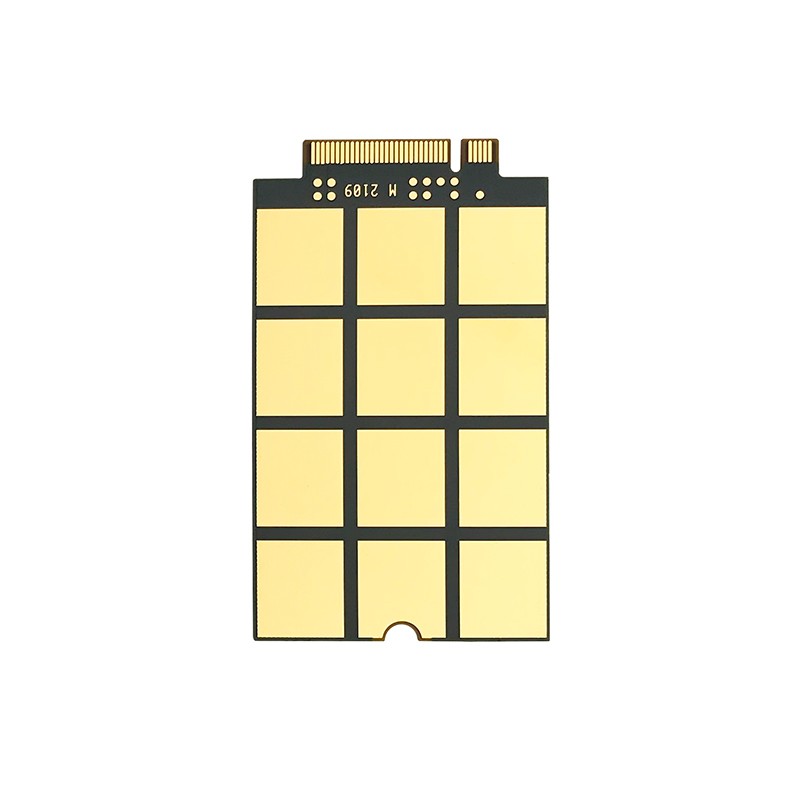

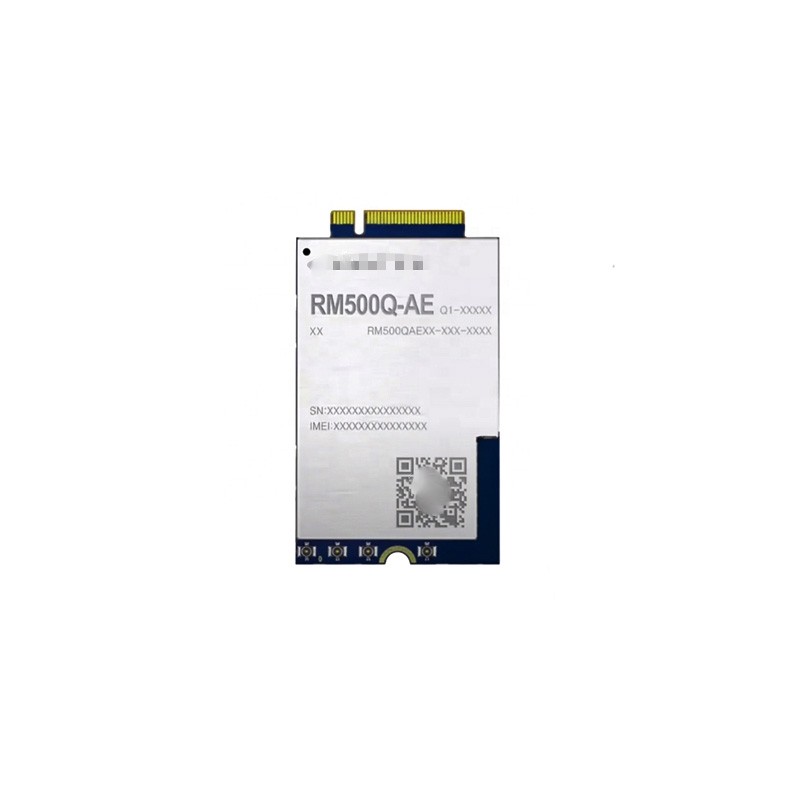

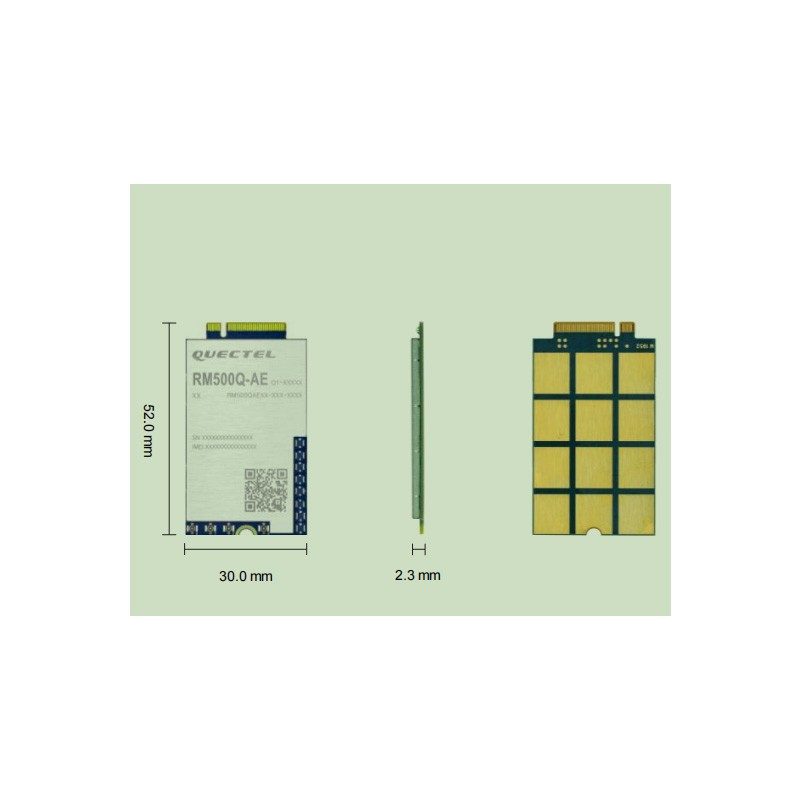

Quectel RM502Q-AE 5G M.2 module Qualcomm,Snapdragon X55 5G modem,quectel rm502q-ae 5g cellular modem
Quectel RM502Q-AE is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Rel-15 LTE technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, RM502Q-AE is compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 modules EM12-G/EM120R-GL/EM121R-GL and Cat 16 module EM160R-GL, which facilitates customers’ migration from LTE-A to 5G. RM502Q-AE is an industrial-grade module for industrial and commercial applications only.
Key Benefits
5G/4G/3G multi-mode module with M.2 form factor, optimized for IoT and eMBB applications
Worldwide 5G and LTE-A coverage
Both NSA and SA modes supported
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
Feature refinements: DFOTA and VoLTE (optional)
| RM502Q-AE 5G Module | ||
| 5G | 5G NR | 3GPP Release 15 NSA/SA operation, Sub-6 GHz |
| 5G NR NSA | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 | |
| 5G NR SA | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 | |
| MIMO | DL: 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 UL: 2 × 2 MIMO on n41 | |
| LTE | LTE Category | DL Cat 20/ UL Cat 18 |
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/ B29/B30/B32/B66/B71 | |
| LTE-TDD | B34/B38/B39/B40/B41/B42/B43/B48 | |
| LAA | B46 (only support 2 × 2 MIMO) | |
| DL 4 × 4 MIMO | DL: 4 × 4 MIMO on B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 | |
| UMTS | WCDMA | B1/B2/B3/B4/B5/B6/B8/B19 |
