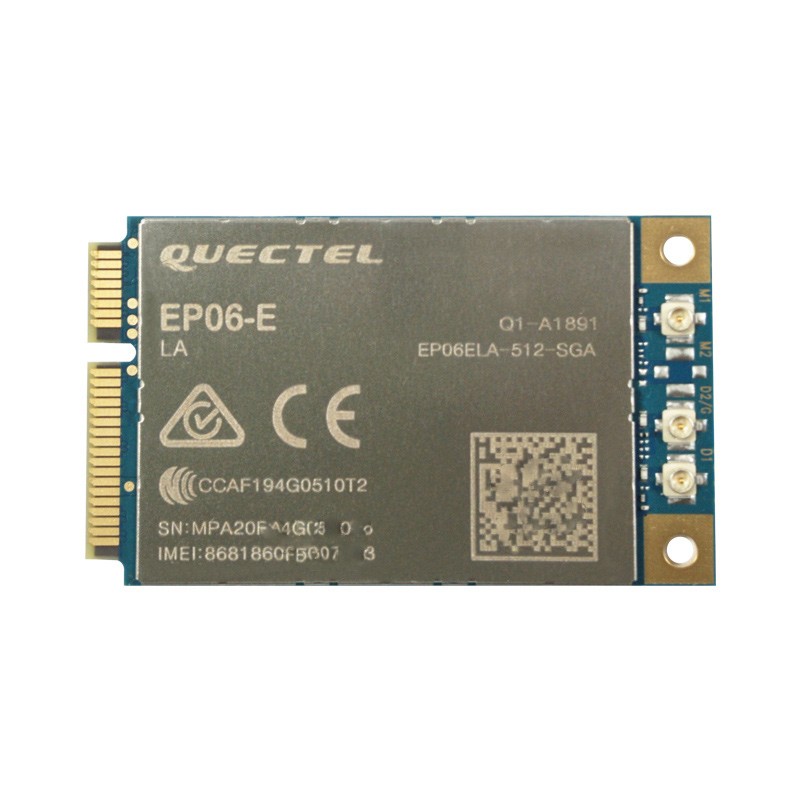

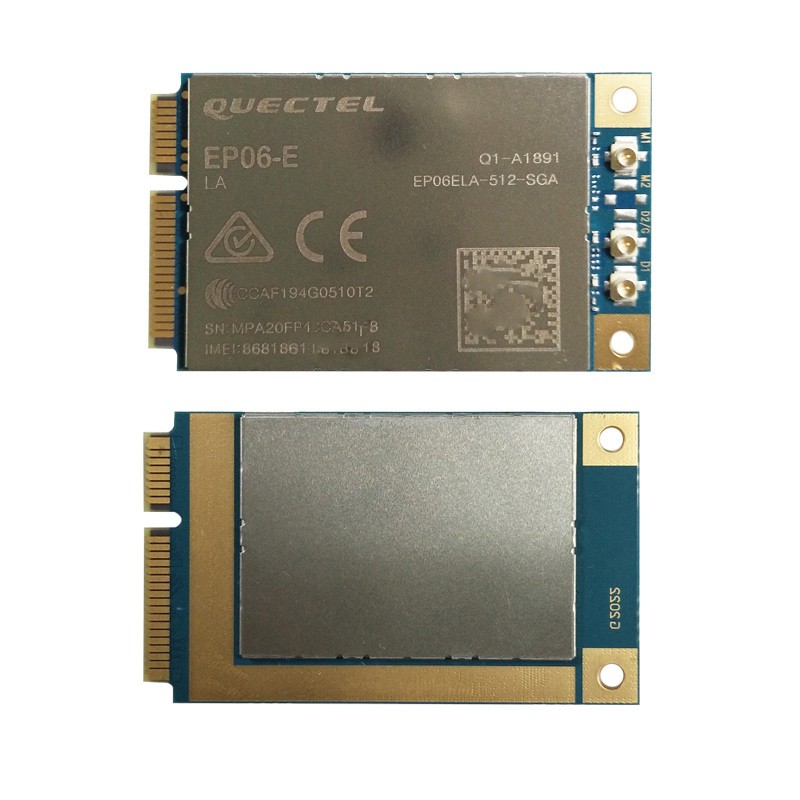

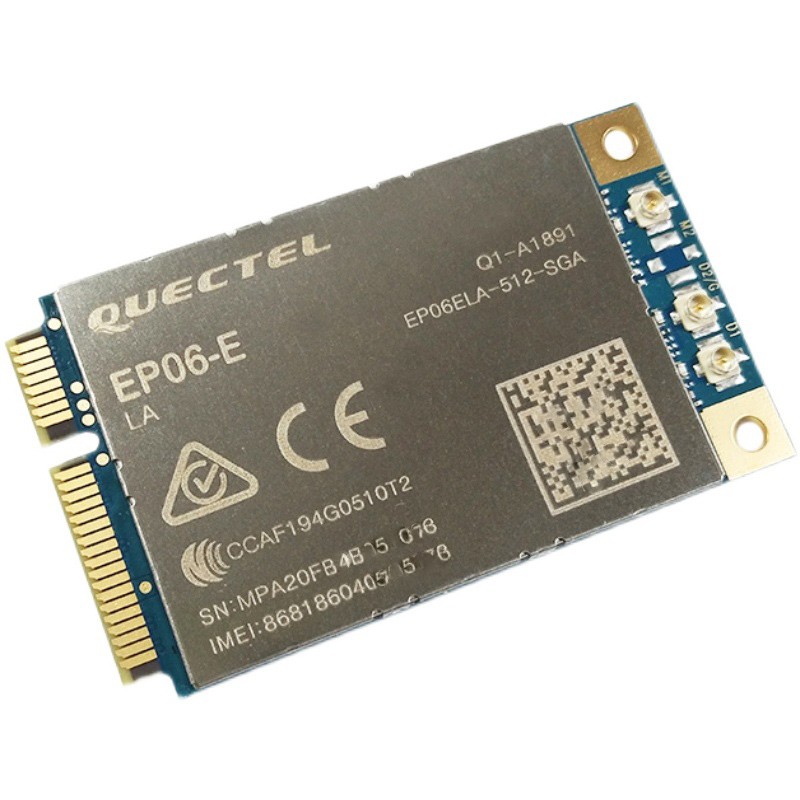

Quectel ep06-e lte cat 6 4g module

Overview

Quectel EP06 is a series of LTE category 6 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11

LTE technology, it delivers maximum data rates of 300 Mbps downlink and 50 Mbps uplink.

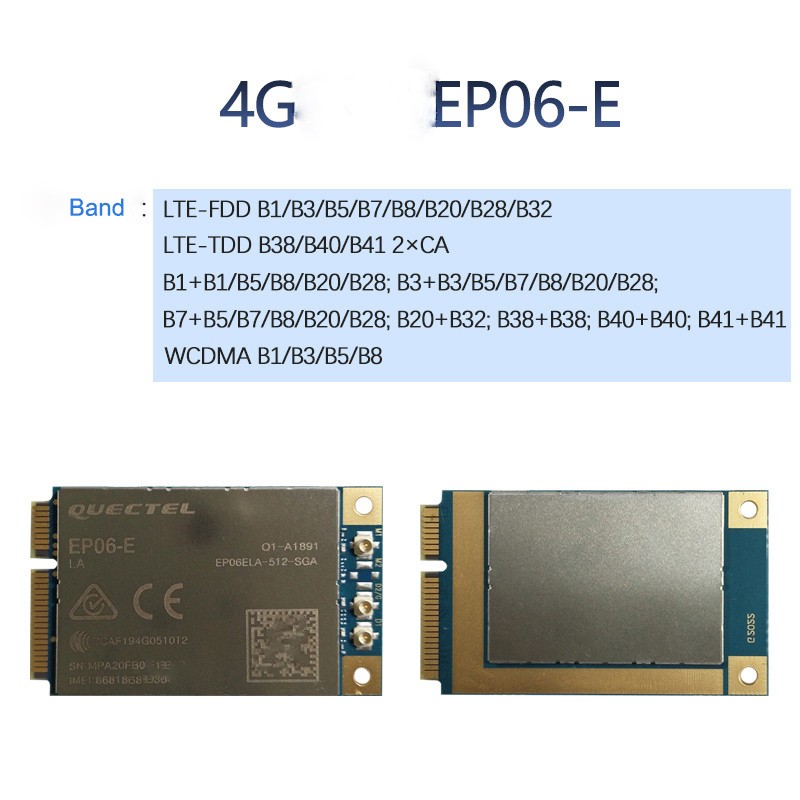

Designed in the Mini PCIe form factor, EP06 series contains 2 variants (EP06-E and EP06-A) for different target regions and

both variants nearly cover all the mainstream carriers worldwide. The module can perform data communication in a plurality of

network modes such as LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA.

EP06 series supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS).

The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning

capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7,

Windows 8/8.1, Windows 10, Linux and Android) extend the applicability of the module to a wide range of M2M and IoT

applications such as industrial router, home gateway, set top box, industrial PDA, rugged tablet PC, video surveillance and

digital signage.

Key Benefits

• LTE Cat 6 module with Mini PCIe form factor, optimized for M2M and

  IoT applications

  Support LTE-A carrier aggregation

  Worldwide LTE-A and UMTS/HSPA(+) coverage

  Multi-constellation GNSS receiver available for applications

  requiring fast and accurate fixes in any environment

  Feature refinements: supports DFOTA and DTMF

  Adopting MIMO technology which meets demands for data rate and

  link reliability in modem wireless communication systems
