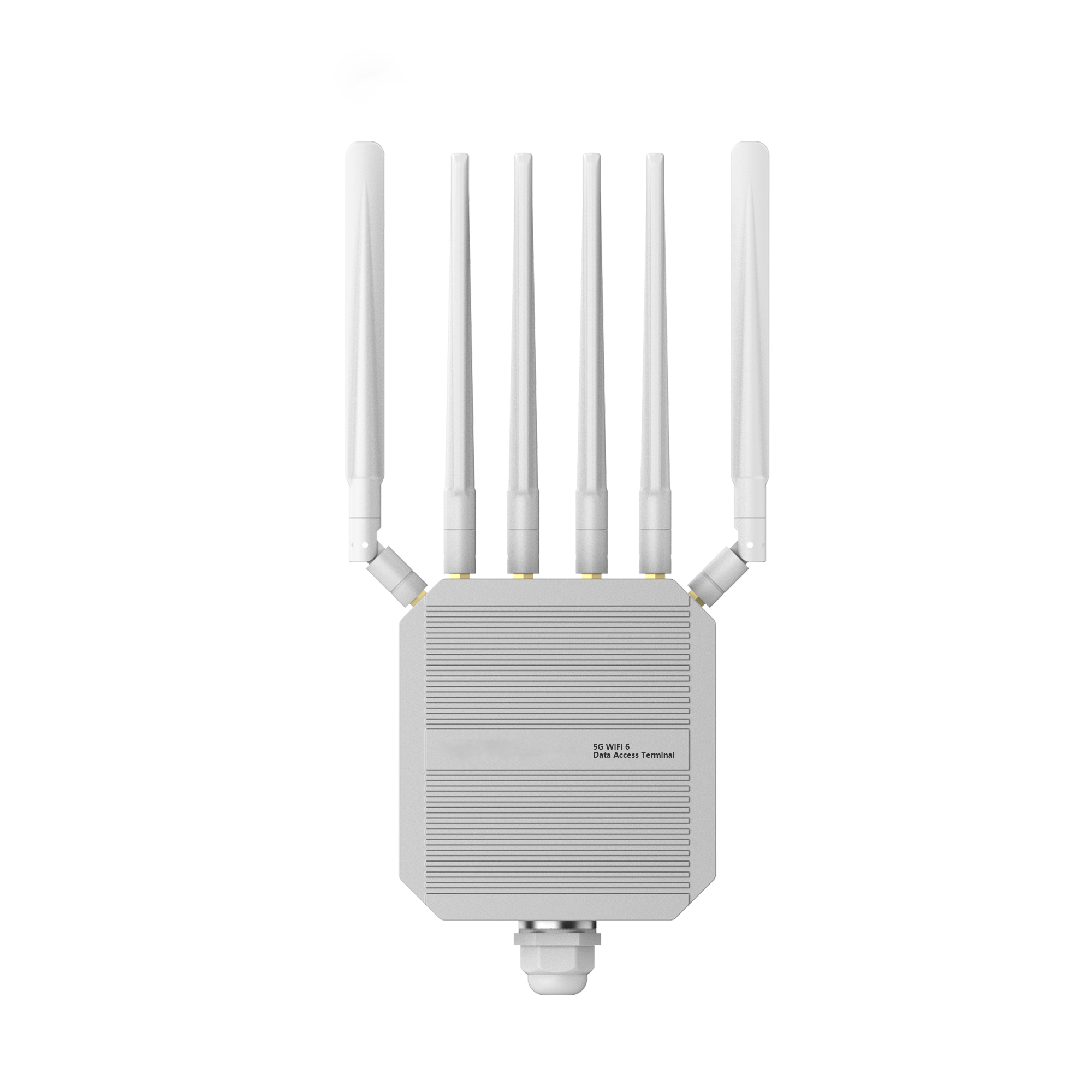

5g NSA/SA Sub-6 GHz Waterproof POE Gigabit LAN 5g cpe outdoor routers

Summary

The AL12K21 product is developed based on a new hardware platform. By accessing the 5G base station

signal and converting it into WiFi and wired network, it can meet the increasing access requirements of

mobile terminals and IoT nodes, and can greatly improve the user's wireless Internet experience.

The CPE is fully compatible with NSA/SA dual-mode and complies with the network access standards for

telecom products of the Ministry of Industry and Information Technology. Provides up to gigabit air fiber

access capability to meet the transmission bandwidth requirements of VR/AR/4GK/8K online video

streams.

Access the Internet through the mobile network (5G/LTE), plug in the operator's SIM card and power

on to enjoy a super-fast Internet experience

Key Features

Built-in Qualcomm™ SDX62 modem, it has the best 5G mobile network performance and works with integrated worldwide 5G to 2G multi-mode.

 Wi-Fi 6 (802.11ax)

The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line, more client connections, lower latency, and best network efficiency.

 Higher Wireless Capacity

Dual-band 4 spatial streams, the CPE outputs 1800Mbps wireless bandwidth (600 + 1200), making you peace of mind while enjoying UHD videos, and online games during the home rush hours. It’s a future-proof investment absolutely.

 Hybrid MESH+ Networking

The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all corners and dead zones by adding one more MESH+ node (another series of routers). it improves the deployments of wireless networks and optimized the seamless feature.

Datasheet

5G Cellular

Built-in Qualcomm™ SDX62 modem, it has the best 5G mobile network performance and works with integrated worldwide 5G

to 2G multi-mode.

5G Cellular

1) 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF System

2) 5G Network Modes: SA (standalone), NSA (non-standalone)

3) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

4) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

5) 5G Standards:3GPP Release 15

6) 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)

7) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)

4G Cellular

8) LTE Category:Down Cat 16/ UP Cat 18

9) LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

10) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48

11) LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66

12) WCDMA:B1/B2/B3/B4/B5/B8/B19

13) LTE : Down 1.0 Gbps;UP 200 Mbps

WiFi

1) Working Radio: #1: 300Mbps @ 2.4GHz(Mode only supported)

Data Switching

1) Mobile 4G/5G Connection (Support APN)

2) Giga Ethernet Connection

3) Advanced Firewall

4) MAC Filter

5) VPN Passthrough and VPN Client (L2TP PPTP)

6) IPV4/IPV6

7) WEB Management

8) Firmware upgrade

9) TR069

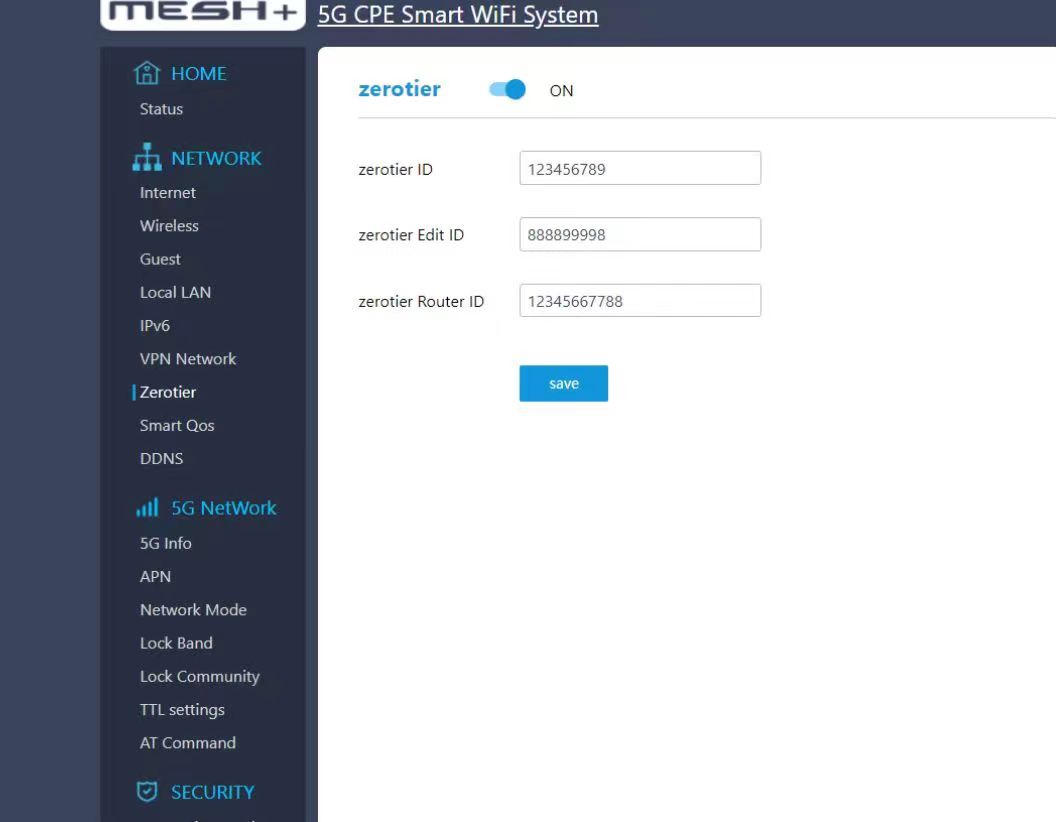

10)Zerotier

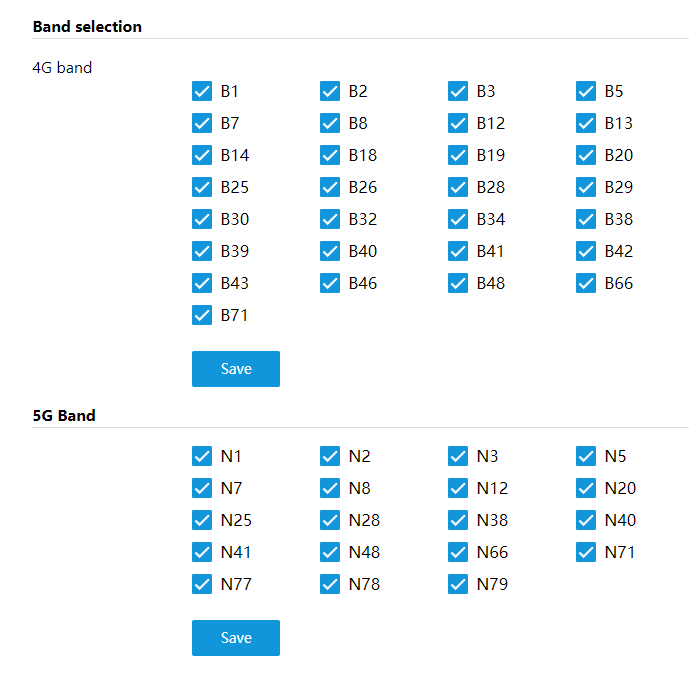

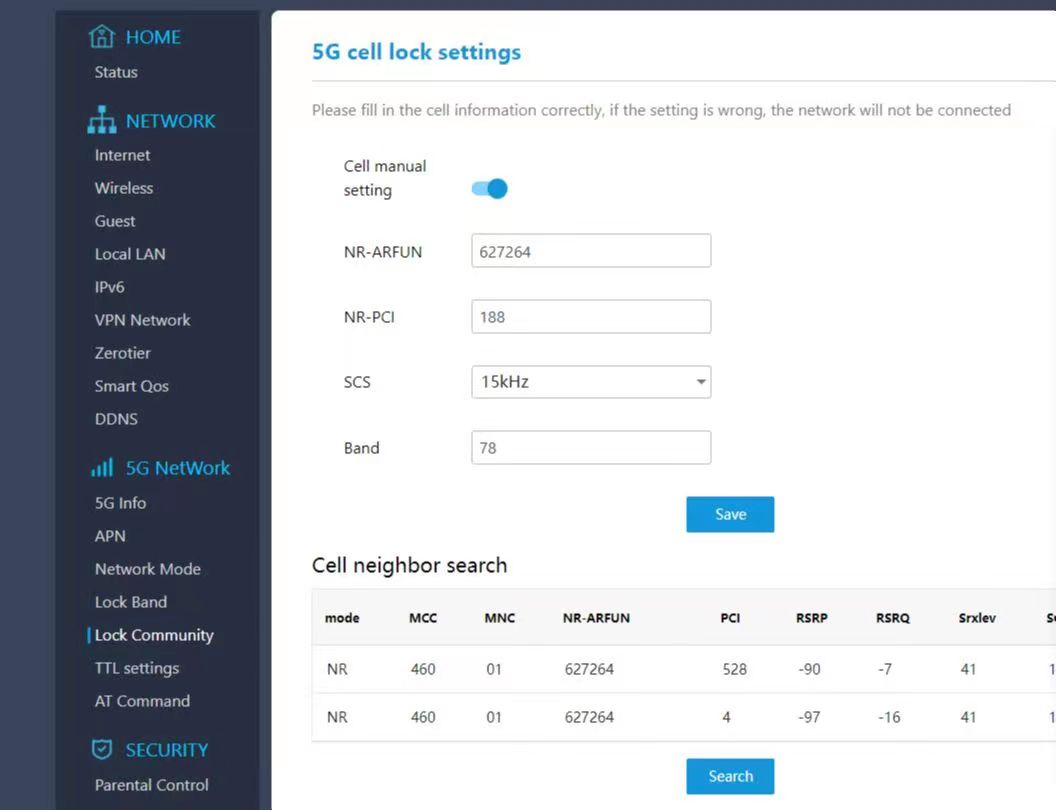

11)Band locked, cell locked

12)Custom TTL

13)AT command terminal

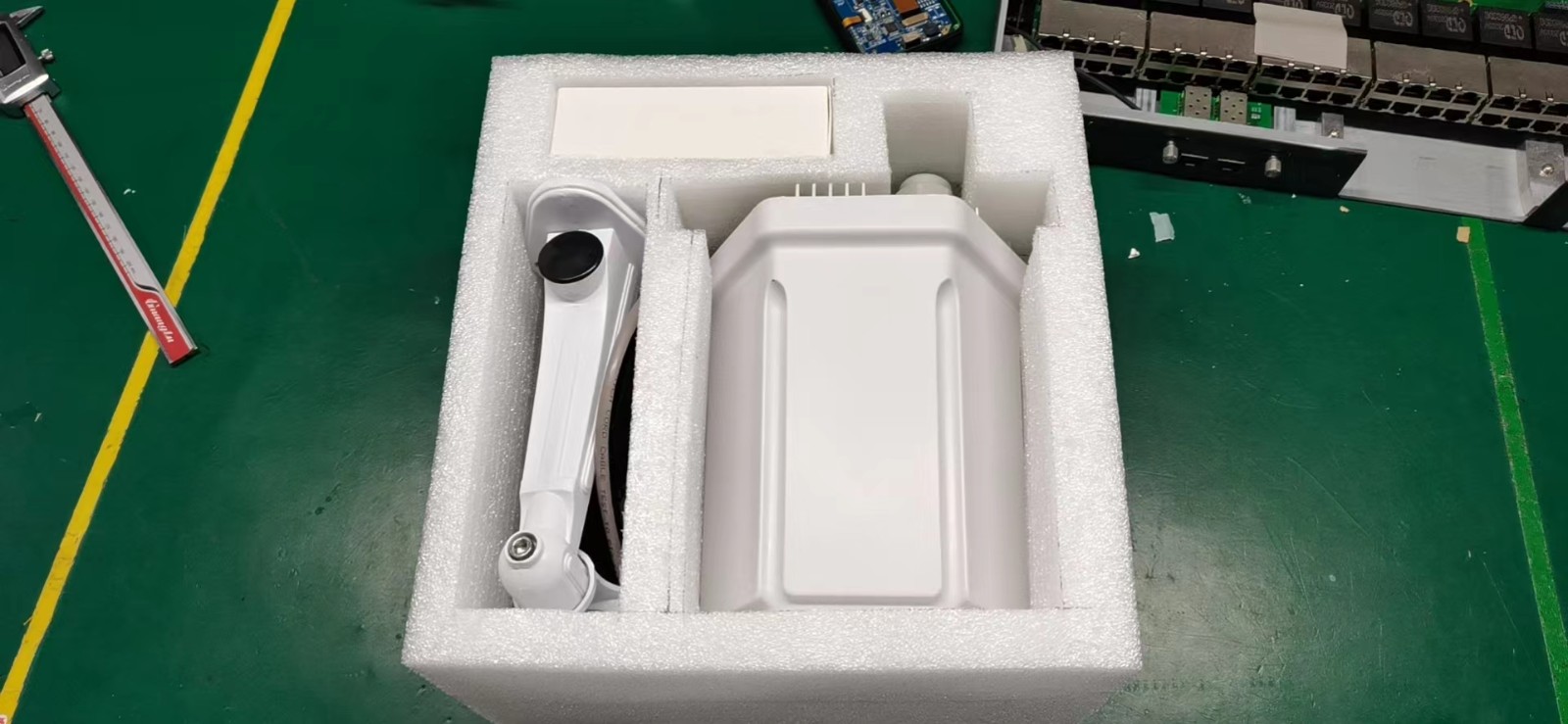

What’s in the package?

• One (1) 5G CPE Router (AL12K21)

• One (1) 1m Cat6 Ethernet cable

• One (1) Power Adapter

• Quick Start Guide
