we826-q-h001 POE 300M 2.4G 4g lte outdoor wifi router
we826-q cellular modem 4g lte wifi router
Introduction:
WE826Q-H is a 3G/4G Modem wifi router specially for Outdoor use. This device has a Wide Area Network VPN tunnel and Local Area Network WiFi security authentication function, which can realize the seamless connection between the wireless LAN and wireless WAN, providing high speed, safe and reliable broadband service.

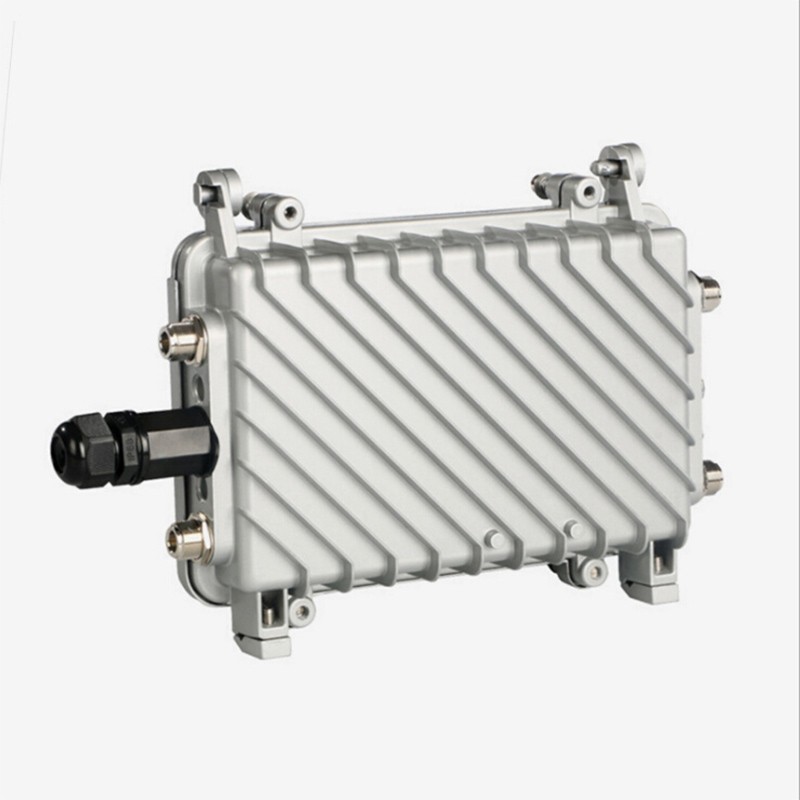

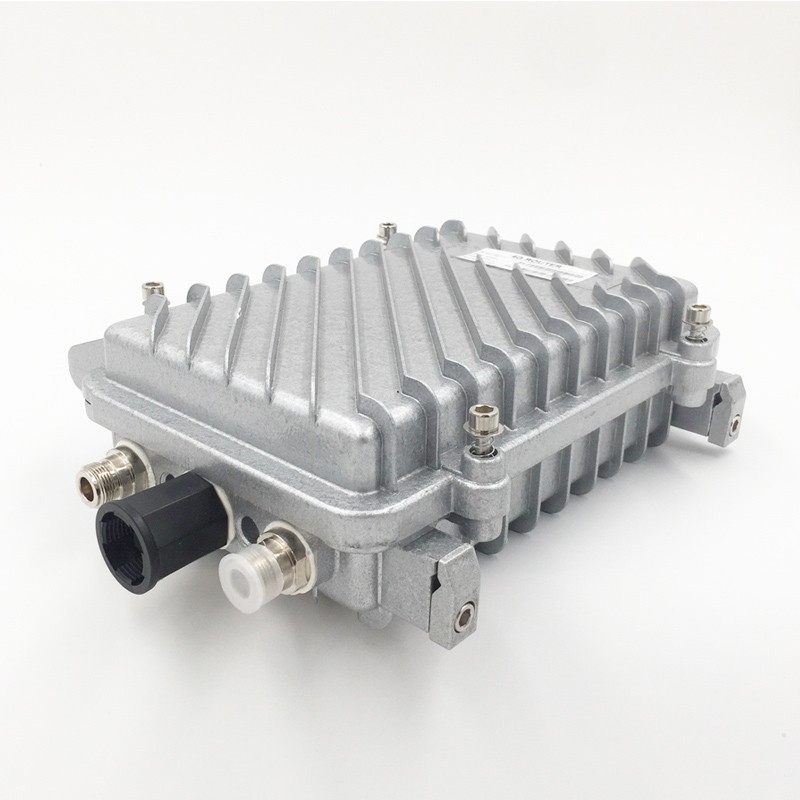

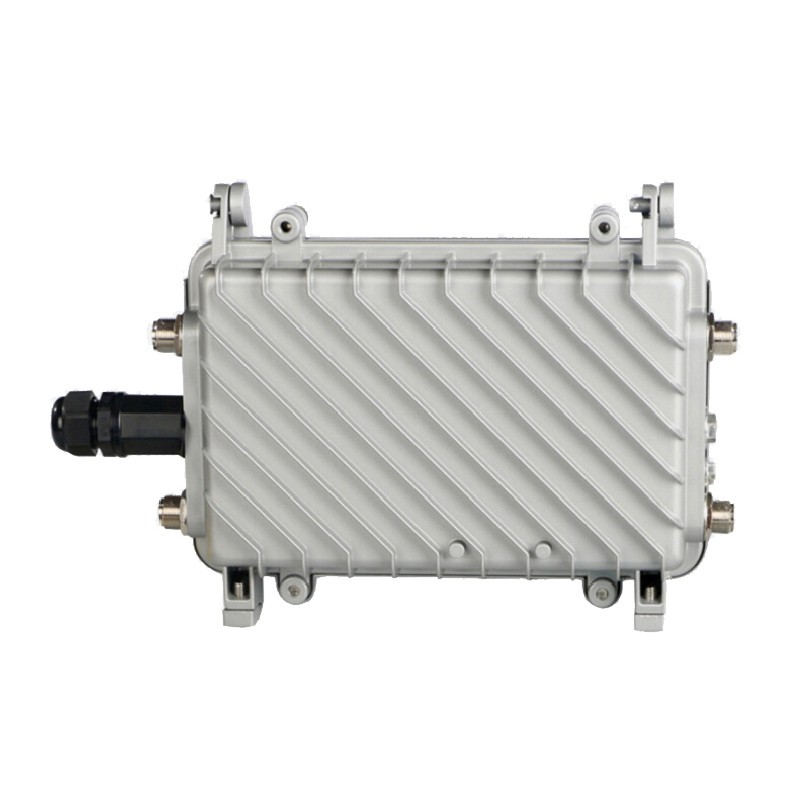

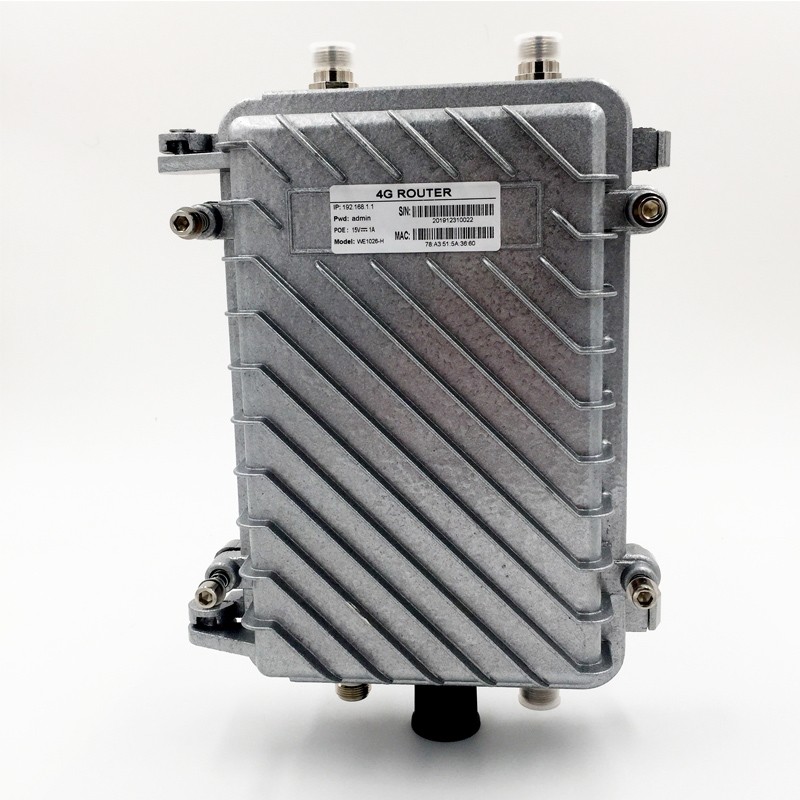

use metal case with outdoor anti-interference and waterproof design, which is to achieve excellent anti-interference performance. It can be widely used in chain enterprise, hotel, commercial (stores, club, restaurant, coffee shop), banks, medical treatment, scenic areas, schools, and similar application scenarios.
Product Feature
---Complies 802.11n/802.11g/802.11b/802.3/802.3u
---2*10/100 Mbps RJ45 port,Auto MDI/MDIX
---1*USB2.0 Port
---1*MICRO SD (TF) slot
---1*PCI-E Interface, support 3G/4G dial-up,
---1*SIM card slot support 3G/4G dial-up ( need 3G/4G PCI-E module)
---Support USB port dial-up( need 3G/4G PCI-E module)
---Powered by 15V 1A POE supply
Version OPTIONS:
Category | version | Carrier agrregation | Band Support | Support area |
Cat4 | AE Version | / | LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5 | North america |
EU Version | / | LTE-FDD:B1/B3/B7/B8/B20/B28A LTE-TDD:B38/B40/B41 WCDMA:B1/B8 GSM:B3/B8 | Asia,africa, middle east ,EU | |
Cat6 | AE Version | suport | LTE-FDD:B2/B4/B5/B7/B12/B13/ B25/B26/B29/B30/B66 2xCA:B2+B2/B5/B12/B13/B29; B4+B4/B5/B12/B13/B29; B7+B5/B7/B12/B26;B25+B5/ B12/B25/B26;B30+B5/B12/B29; B66+B5/B12/B13/B29/B66 WCDMA:B2/B4/B5 | North america |
EU Version | suport | LTE-FDD:B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD:B38/B40/B41 2xCA:B1+B1/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B20+B32; B38+B38; B40+B40; B41+B41 WCDMA:B1/B3/B5/B8 | Asia,africa, middle east ,EU | |
Cat12 | Global | suport | LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B9/ B12/B13/B14/B17/B18/ B19/B20/B21/B25/B26/B28/B29/B30/B32/B66 LTE TDD:B38/B39/B40/B41 DL 2× CA: Inter-band CA/Intra-band CA DL 3 × CA: Inter-band CA/Intra-band CA WCDMA:B1/B2/B3/B4/B5/B8/B9/B19 | Global |
Cat16 | Global | suport | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66 LTE-TDD: B38/B39/B40/B41/B42/B43/B46(LAA) /B48(CBRS) WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 Support up to DL 5 x CA LTE DL 4x4 MIMO Band LTE-FDD: B1/B2/B3/B4/B7/B25/B30/B32/B66 LTE-TDD: B38/B39/B40/B41 | Global |
Specification:
Main Chipset | QCA 9531 chipset |
RAM | DDR2 128MB (MAX DDR2 256MB) |
SPI FLASH | 16MB |
Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a |
Work Channel | 2.4GHz choose :1-13 |
Work Frequency | 2.4GHz |

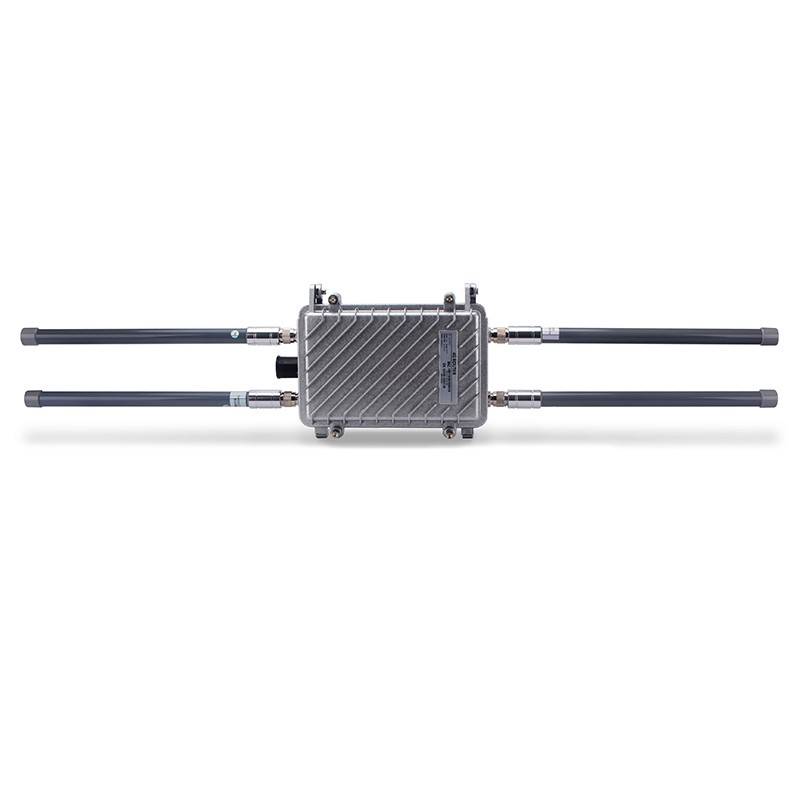

Antenna | 4 removable 5dBi antenna |
Interface | 1 PCI-E slot 1 SIM card slot 1 USB 2.0 port 1 Micro SD card slot 1 10/100M WAN port(Auto MDI/MDIX) |
LED | Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 |
Button | Reset/WPS |
Max Power consumption | < 12W |

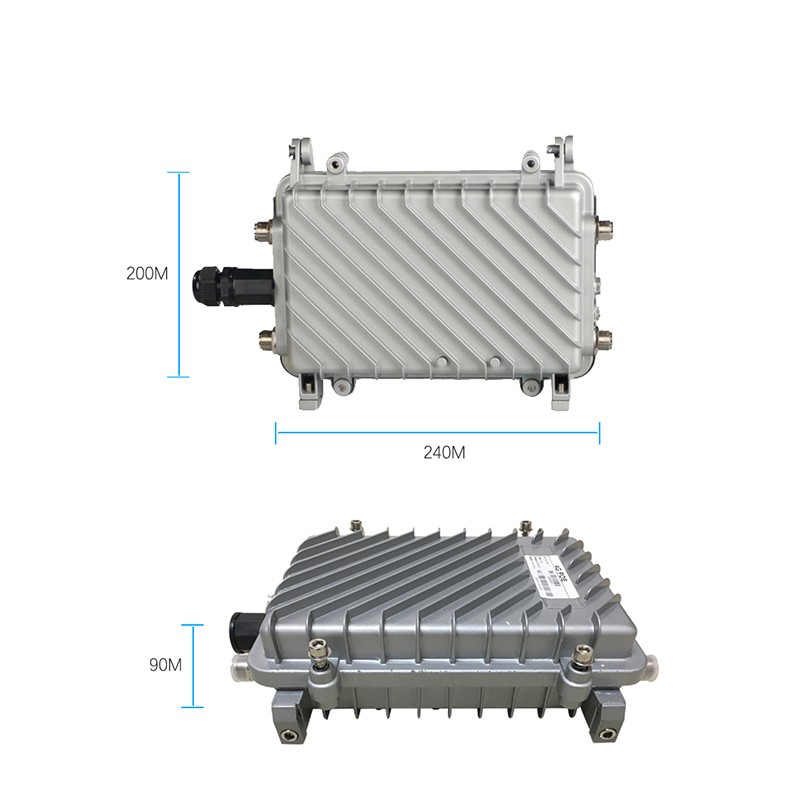

Dimension(L*W*H) | 110*80*30MM |
software | |
WAN Type | PPPoE,Dynamic IP, Static IP |
Work Mode | AP; Router; |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Firewall Security | Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
DDNS | Support |
VPN | PPTP, L2TP, IPSec (ESP Head) |
Other Function | System Log Static Router Band Control Mac clone |
Adapter | 12V 1A/12V 2A Optional |
Work Environments | Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing |
Authentication | FCC & CE certifications |
Firmware :
Openwrt/ Goldenorb ROOter Firmware. for more detail, please contact us.
