5g sa/nsa dual modes mesh wifi6 5g wireless cpe router with sim card slot

5G & WiFi-6 Smart Router System(CPE)

Summary

5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.

The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.

The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.

Key Features

n 5G Cellular

Built-in Qualcomm™ SDX62 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.

n Wi-Fi 6 (802.11ax)

The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, best network efficiency.

n Higher Wireless Capacity

Dual-band 4 spatial streams, the CPE outputs 1800Mbps wireless bandwidth (600 + 1200), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.

n Hybrid MESH+ Networking

The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.

Datasheet

5G Cellular

1) 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF System

2) 5G Network Modes: SA (standalone), NSA (non-standalone)

3) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

4) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

5) 5G MiMo :DL:4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79

      UP:2 × 2 MIMO on n41

6) 5G Standards:3GPP Release 15

7) 5G SA Transmission Speed:2.1Gbps/450Mbps (up to ISPs)

8) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)

n 4G Cellular

1) LTE Category:Down Cat 16/ UP Cat 18

2) LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

3) LTE-TDD:B34/B38/B39/B40/B41/B42/B43/B48

4) LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66

5) WCDMA:B1/B2/B3/B4/B5/B6/B8/B19

6) LTE :  Down 1.0 Gbps;UP 200 Mbps

n Data Switching

1) Mobile 4G/5G Connection (Support APN)

2) Giga Ethernet Connection

3) MESH:MESH+ hybird

4) 2.4G/5Ghz WiFi

5) Advanced Firewall

6) MAC Filter

7) WiFi Sercurity

8) VPN Passthrough and VPN Client (L2TP PPTP)

9) IPV4/IPV6

10) WEB / APP Mangement

11) Firmware upgrade

Hardware Specification

1) CPU: MT7621AT

2) Memory:16MB Flash + 256MB DDR3

3) Ethernet:1*1Gbps WAN,2*LAN 1Gbps

4) 1* SIM Slot(Nano-SIM)

5) Reset button

6) MESH+ Button

7) MESH+ LED Switch

8) LED Indicator

– MESH+ Working Status (breathing light)

– 4G Status

– 5G Status

– WiFi Status

– Power Status

9) General

– Power Consumption:<20W

– DC Power Supply: 12V/2A

– Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃

– Humidity:5%~95%

– Dimensions:108X108X216MM

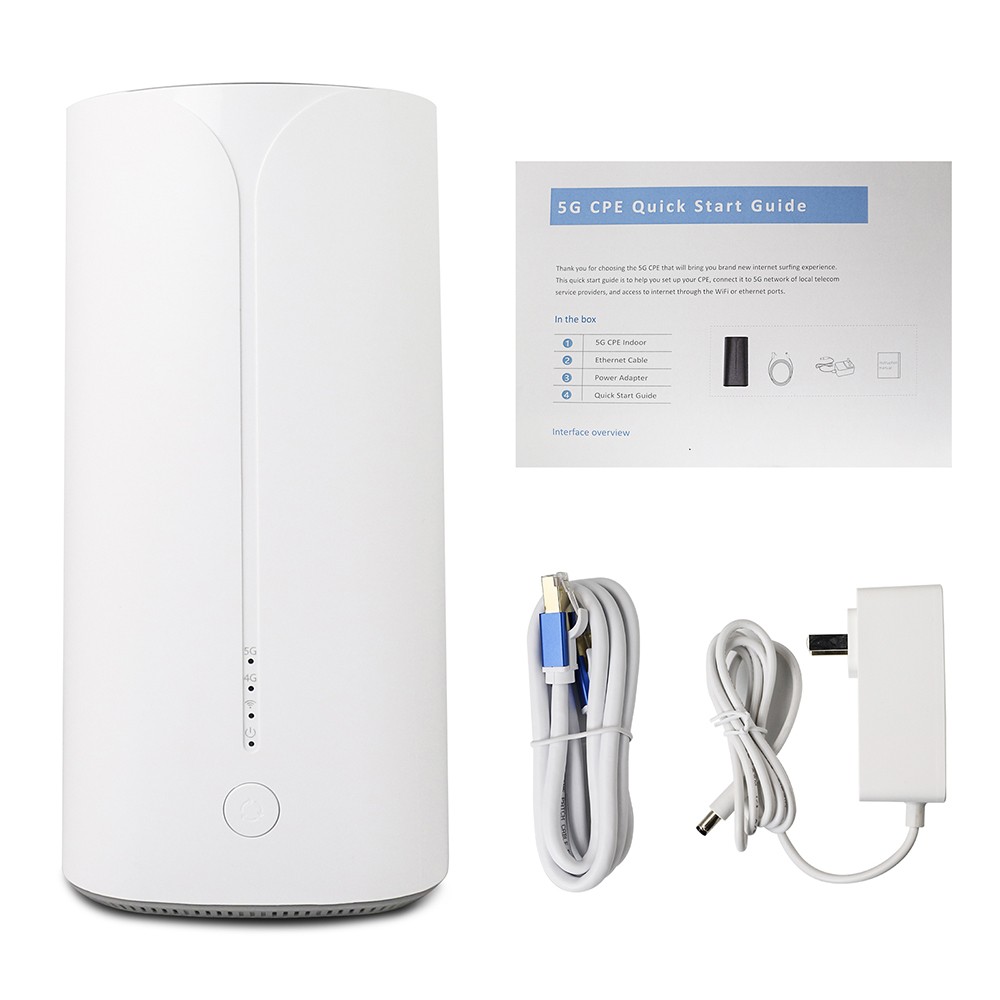

What’s in the package?

• One (1) 5G CPE Router (M01K21)

• One (1) 5G CPE Router (M01K21)

• One (1) Power Adapter

• Quick Start Guide
